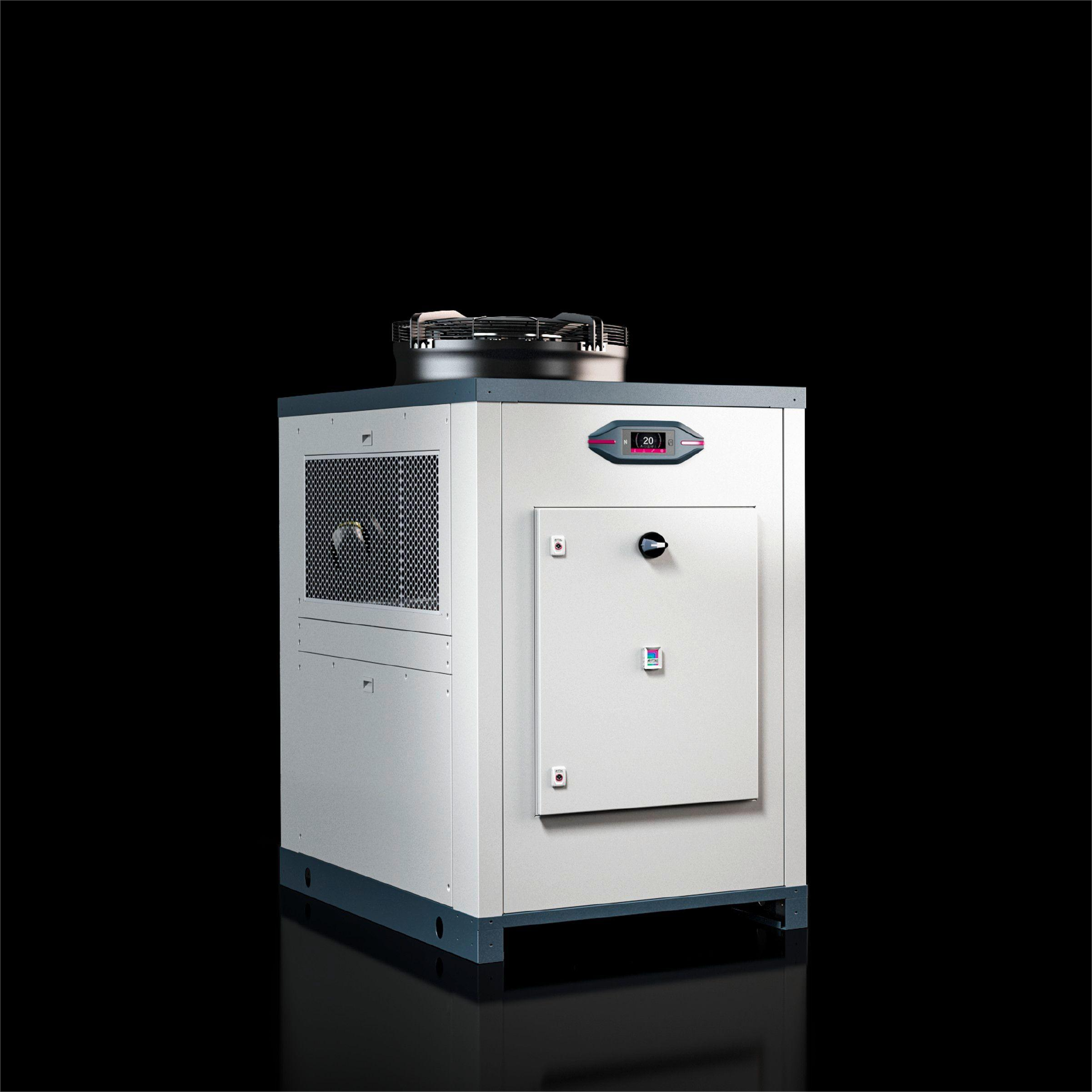

SK 3336480 Chillers Blue e 44,7KW
SK Blue e chiller 44.7/50.5 kW, 400 V, 3~, 50 Hz, 460 V, 3~, 60 Hz, WHD: 900 x 1733 x 1800 mm
-
3336480
-
Liên hệ
-
0
- Thông tin chung
- Tài liệu kỹ thuật
- Ứng dụng
- Lỗi thường gặp
- Hướng dẫn sử dụng
- Video
Total cooling output TW10 TU32, 50/60 Hz: 39,1 / 44,4 kW,,
Total cooling output TW18 TU32, 50/60 Hz: 47,4 / 52,2 kW
Total cooling output TW18 TU35, 50/60 Hz: 44,7 / 50,5 kW,,
Power consumption 50/60 Hz: 20,3 / 25,5 kW,,
Rated power input 50/60 Hz: 36,1 / 37,7 A,,
Volumetric flow (cooling medium) 50/60 Hz: 115 / 145 l/min,,
Pump pressure 50/60 Hz: 2,0 bar,,
Rated operating voltage: 400 V, 3~, 50 Hz; 460 V, 3~, 60 Hz,,
Colour: Enclosure: RAL 7035; Base/plinth: RAL 7016,,
Dimensions [WxHxD]: 900x1733x1800 mm,,
Operating temperature range: 10 °C to 43 °C,,
Liquid media temperature range: 10 °C to 25 °C,,
Temperature hysteresis: +/- 2 K,,
Number of cooling circuits: 2,,
Refrigerant / Quantity:,,R410a / 2900 g
Tank (Material): (AISI304) V2A,,
Tank (contents): 185 l,,
Water connections: R 1"1/2 IG,,
Noise level: 78 dB(A),,
Protection category IP to IEC 60 529: IP 44 (electrics),,
Weight: 530 kg,,
Weight in operating status: 720 kg
