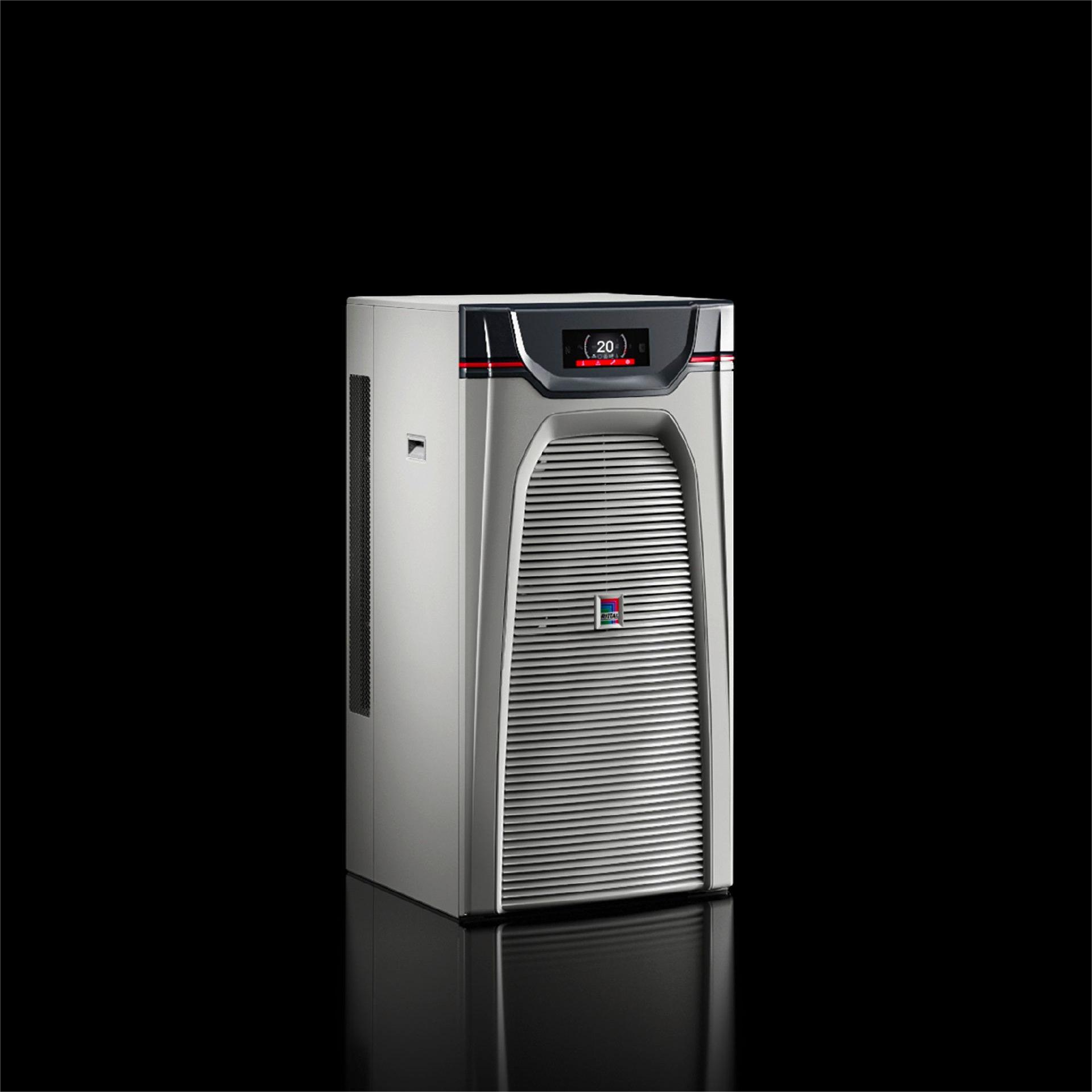

SK 3334450 Chillers Blue e+ 7KW
Blue e+ chiller 7.0 kW, 380-415 V / 440-480 V, 3~, 50/60 Hz, WHD:450x1020x710 mm
-
3334450
-
Liên hệ
-
0
- Thông tin chung
- Tài liệu kỹ thuật
- Ứng dụng
- Lỗi thường gặp
- Hướng dẫn sử dụng
- Video
Total cooling output TW18 TU35, 50/60 Hz: 7,0 / 6,9 kW,,
Power consumption 50/60 Hz: 2,84 / 3,07 kW,,
Volumetric flow (cooling medium) 50/60 Hz: 20 l/min,,
Pump pressure (max.) at 50 Hz: 2,9 bar,,
Rated current 50/60 Hz: 4,28 / 4,1 A,,
Rated operating voltage: 380-415 V, 3~, 50 Hz; 440-480 V, 3~, 60 Hz,,
Temperature control: e+ controller (factory setting +20 °C) ,,
Dimensions [WxHxD]: 450x1000x710 mm,,
Colour: textured RAL 7035,,
Tank (Material): PE plastic,,
Tank (contents): 12 l,,
Refrigerant / Quantity: R-513A / 1500 g,,
Number of cooling circuits: 1,,
Temperature hysteresis: +/- 0,5 K,,
Water connections: 2x 3/4" IG,,
Water circuit: hermetically open ,,
Operating temperature range: -5 °C bis 50 °C,,
Liquid media temperature range: 5 °C bis 35 °C,,
Protection category IP to IEC 60 529: IP 24,,
Weight: 105 kg,,
