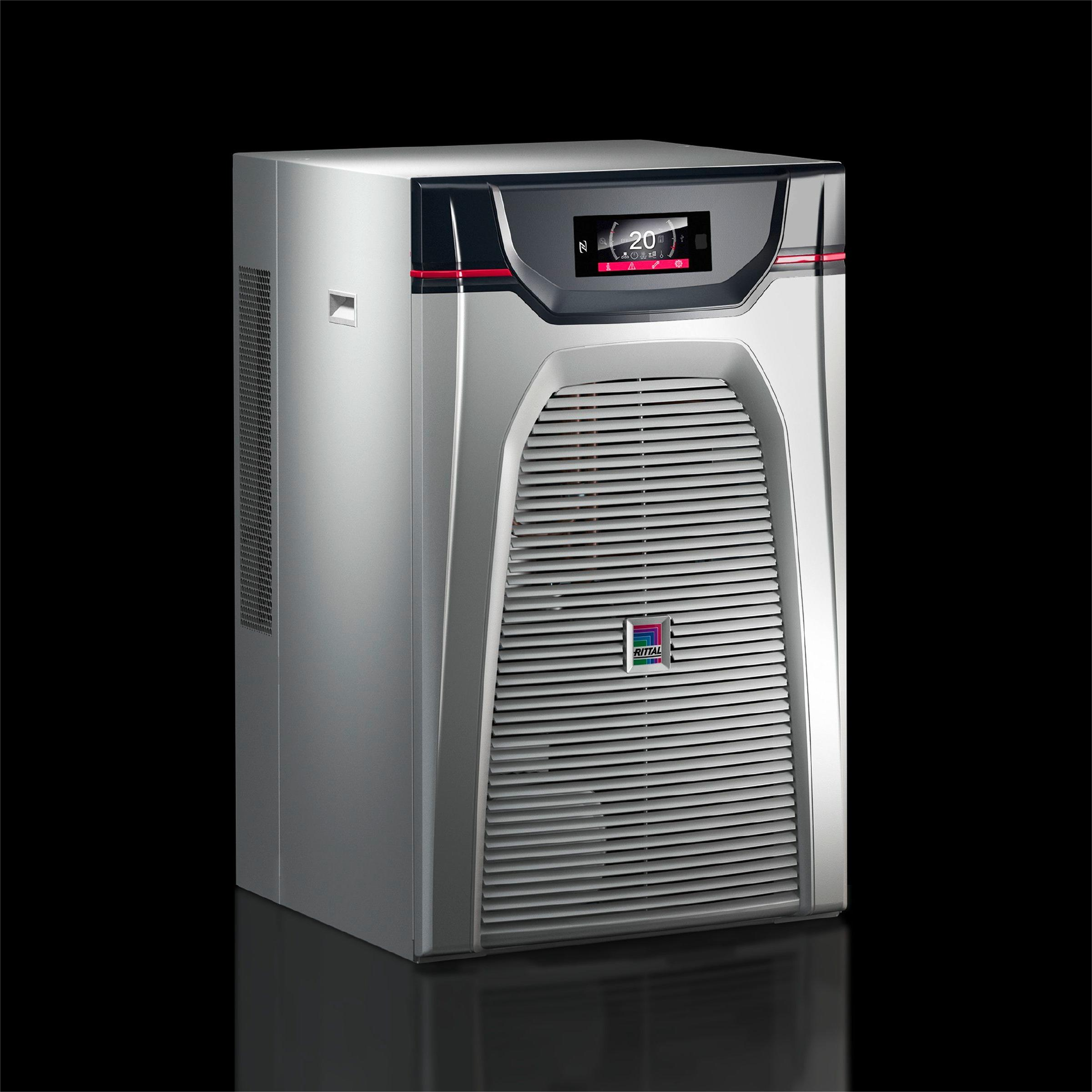

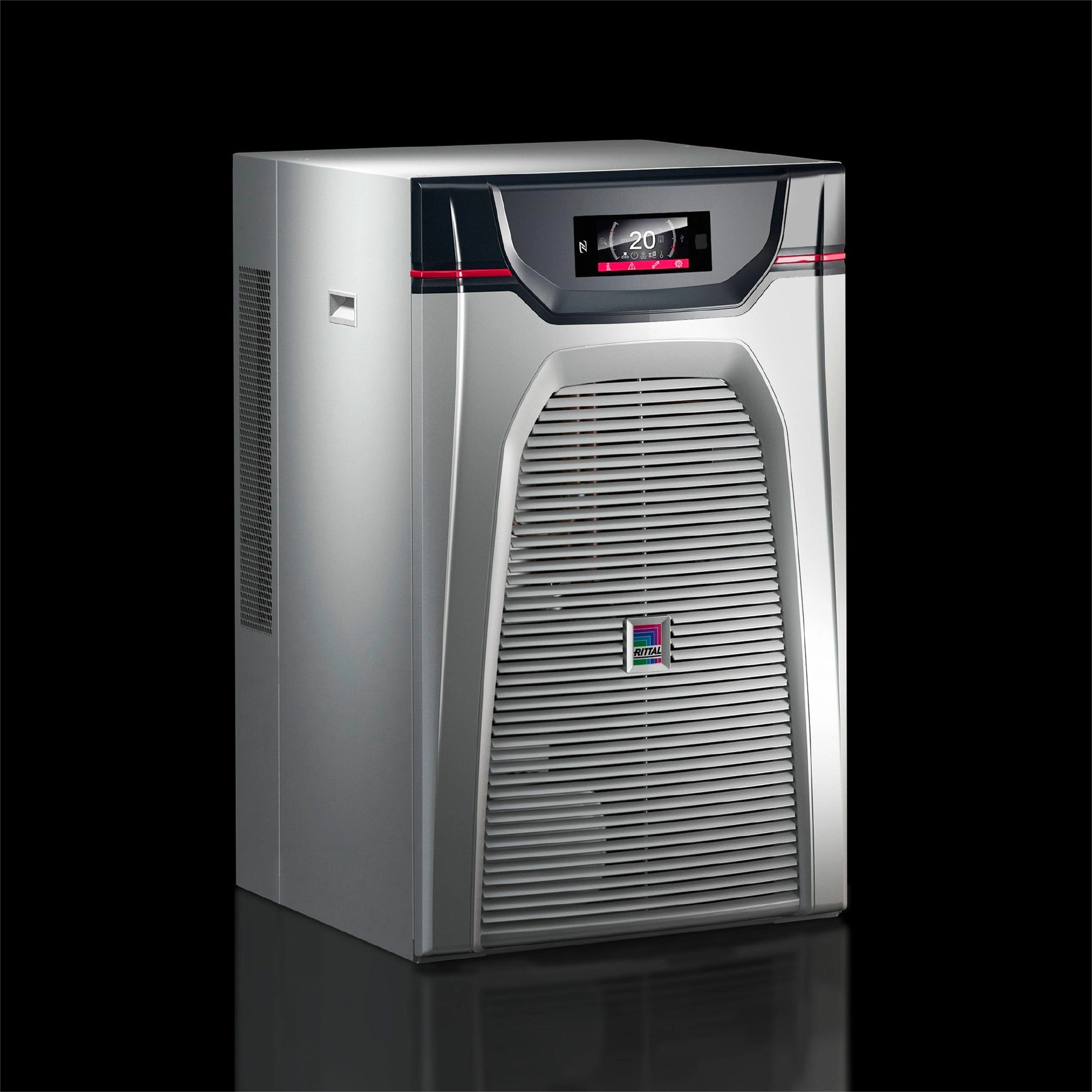

SK 3319100 Chillers Blue e+ 1,5KW
SK Chiller Blue e+, 1.5 kW, 380-415 V, 440-480 V, 3~, 50-60 Hz, WHD: 450 x 820 x 710 mm
-
3319100
-
Liên hệ
-
0
- Thông tin chung
- Tài liệu kỹ thuật
- Ứng dụng
- Lỗi thường gặp
- Hướng dẫn sử dụng
- Video
Total cooling output TW18 TU35, 50/60 Hz: 1<(>,<)>5 / 1<(>,<)>4 kW
Power consumption 50/60 Hz: 1,05 / 1,09 kW
Volumetric flow (cooling medium) 50/60 Hz: 7 l/min
Pump pressure (max.) at 50 Hz: 2,4 bar
Rated current 50/60 Hz: 1,57 / 1,56 A
Rated operating voltage: 380-415 V, 3~, 50 Hz; 440-480 V, 3~, 60 Hz,,
Temperature control: e+ controller (factory setting +20 °C),,
Dimensions [WxHxD]: 450x820x710 mm
Colour: textured RAL 7035
Tank (Material): PE plastic
Tank (contents): 12 l
Refrigerant / Quantity: R-513A / 550 g
Number of cooling circuits: 1
Temperature hysteresis: +/- 0,5 K
Water connections: 2x 3/4" IG
Water circuit: hermetically open,,
Operating temperature range: -5 °C bis 50 °C
Liquid media temperature range: 5 °C bis 35 °C
Protection category IP to IEC 60 529: IP 24
Weight: 85 kg
