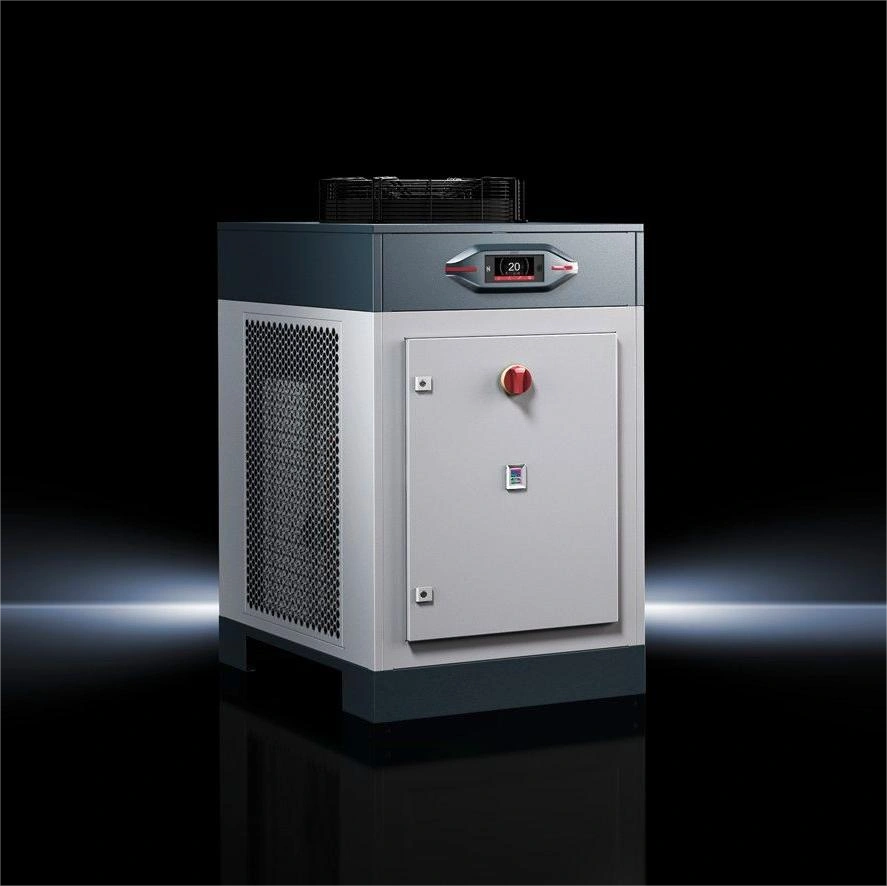

SK 3336430 Chillers Blue e 18,7KW
SK Blue e chiller 18.45/21.44 kW, 400 V, 3~, 50 Hz, 460 V, 3~, 60 Hz, WHD: 760 x 1,265 x 1,515 mm
-
3336430
-
Liên hệ
-
0
- Thông tin chung
- Tài liệu kỹ thuật
- Ứng dụng
- Lỗi thường gặp
- Hướng dẫn sử dụng
- Video
Total cooling output TW10 TU32, 50/60 Hz: 16,3 / 19,2 kW,,
Total cooling output TW18 TU32, 50/60 Hz: 19,3 / 22 kW
Total cooling output TW18 TU35, 50/60 Hz: 18,45 / 21,44 kW,,
Power consumption 50/60 Hz: 8,5 / 10,9 kW,,
Rated power input 50/60 Hz: 19 / 15,9 A,,
Volumetric flow (cooling medium) 50/60 Hz: 45 / 75 l/min,,
Pump pressure 50/60 Hz: 2,0 / 2,0 bar,,
Rated operating voltage: 400 V, 3~, 50 Hz; 460 V, 3~, 60 Hz,,
Colour: Enclosure: RAL 7035; Base/plinth: RAL 7016,,
Dimensions [WxHxD]: 760x1265x1515 mm,,
Operating temperature range: 10 °C to 43 °C,,
Liquid media temperature range: 10 °C to 25 °C,,
Temperature hysteresis: +/- 2 K,,
Number of cooling circuits: 1,,
Refrigerant / Quantity:,,R410a / 1450 g
Tank (Material): PE plastic,,
Tank (contents): 78 l,,
Water connections: R 1 1/4" IG,,
Noise level: 79 dB(A),,
Protection category IP to IEC 60 529: IP 44 (electrics),,
Weight: 310 kg,,
Weight in operating status: 388 kg
