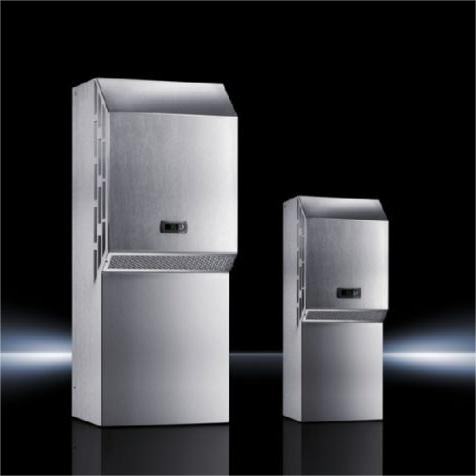

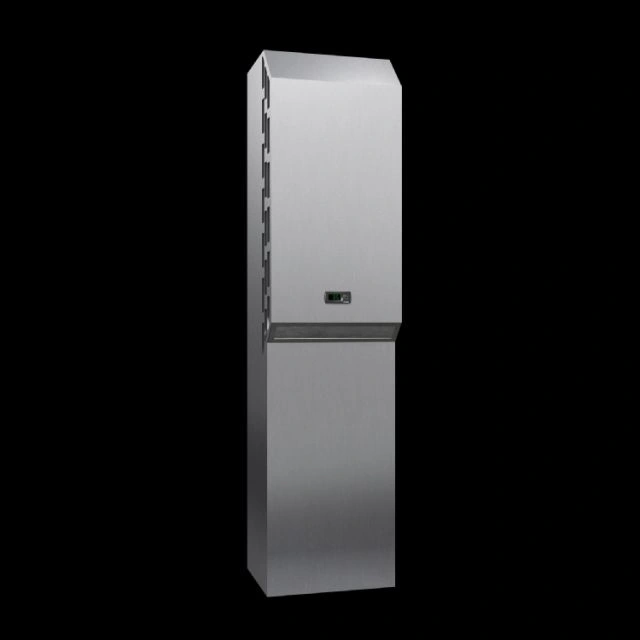

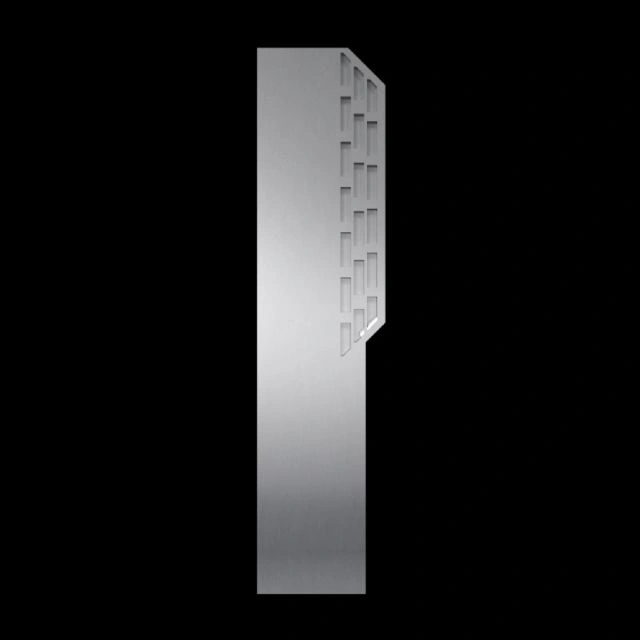

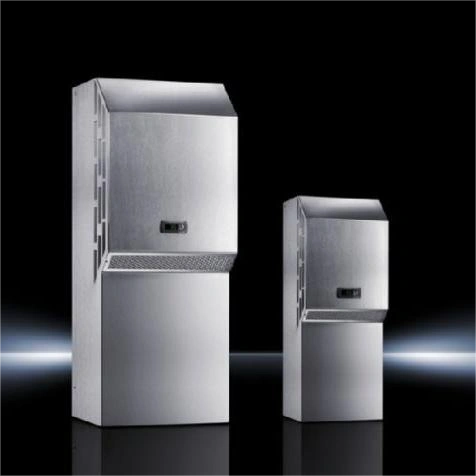

SK 3304504 Máy lạnh tủ điện Rittal , Nema 4X, công suất làm lạnh 1.100 W
Máy lạnh tủ điện 3304504 (máy làm mát tủ điện 3304504) công suất làm lạnh 1.100 W, cấp bảo vệ Nema 4X, được Rittal thiết kế treo đứng trên cánh cửa hoặc bên hông tủ...
-
3304504
-
Liên hệ
-
0
- Thông tin chung
- Tài liệu kỹ thuật
- Ứng dụng
- Lỗi thường gặp
- Hướng dẫn sử dụng
- Video
|
Article number |
SK 3304.504 |
|
Description |
Energy-efficient Blue e wall-mounted cooling units with e-Comfort controller integrated as standard, RiNano coating on the condenser and electrical condensate evaporation. Protection category NEMA 4X. |
|
Benefits |
May be linked with the IoT interface via Blue e IoT adaptor for cooling units with e-Comfort controller |
|
Material |
Stainless steel 1.4404 (AISI 316L) |
|
Protection category IP to IEC 60 529 |
External circuit IP 34 |
| Internal circuit IP 55 | |
|
Protection category NEMA |
NEMA 4X |
|
Supply includes |
Nano-coated condenser |
| Fully wired ready for connection (plug-in terminal strip) | |
| Drilling template | |
| Assembly parts | |
| Integral electric condensate evaporation | |
|
Variant |
wall-mounted |
|
Total cooling output to DIN EN 14511 |
L 35 L 35 at 50 Hz: 1.1 kW |
| L 35 L 35 at 60 Hz: 1.25 kW | |
| L 35 L 50 at 50 Hz: 0.91 kW | |
| L 35 L 50 at 60 Hz: 0.9 kW | |
|
Air throughput (unimpeded air flow) |
External circuit: 805 m³/h |
| Internal circuit: 600 m³/h | |
|
Rated operating voltage |
230 V, 1~, 50 Hz/60 Hz |
|
Dimensions |
Width: 405 mm |
| Height: 1,020 mm | |
| Depth: 358 mm | |
|
Temperature control |
e-Comfort controller (factory setting +35 °C) |
|
Temperature range |
Bearing: -40 °C...+70 °C |
| Operation (environment): +10 °C...+55 °C | |
| Setting range: +20 °C...+50 °C | |
|
Refrigerant/cooling medium |
Refrigerant: R134a |
| Quantity: 0.325 kg | |
| Global Warming Potential (GWP): 1,430 | |
| CO₂ equivalent (CO₂e): 0.46 t | |
|
Power consumption P |
L 35 L 35 at 50 Hz: 0.64 kW |
| L 35 L 35 at 60 Hz: 0.68 kW | |
| L 35 L 50 at 50 Hz: 0.71 kW | |
| L 35 L 50 at 60 Hz: 0.81 kW | |
|
Rated current max. |
At 50 Hz: 3.9 A |
| At 60 Hz: 4.3 A | |
|
Start-up current max. |
At 50 Hz: 12 A |
| At 60 Hz: 14 A | |
|
Miniature circuit-breaker/fuse |
10 A |
|
Permissible operating pressure (p. max.) |
28 bar |
|
eCl@ss 8.0/8.1 |
27180704 |
|
Energy efficiency ratio (EER) 50/60 Hz L35 L35 |
1,83 / 1,84 |
|
Packs of |
1 pc(s) |
|
Weight/pack |
49 kg |
