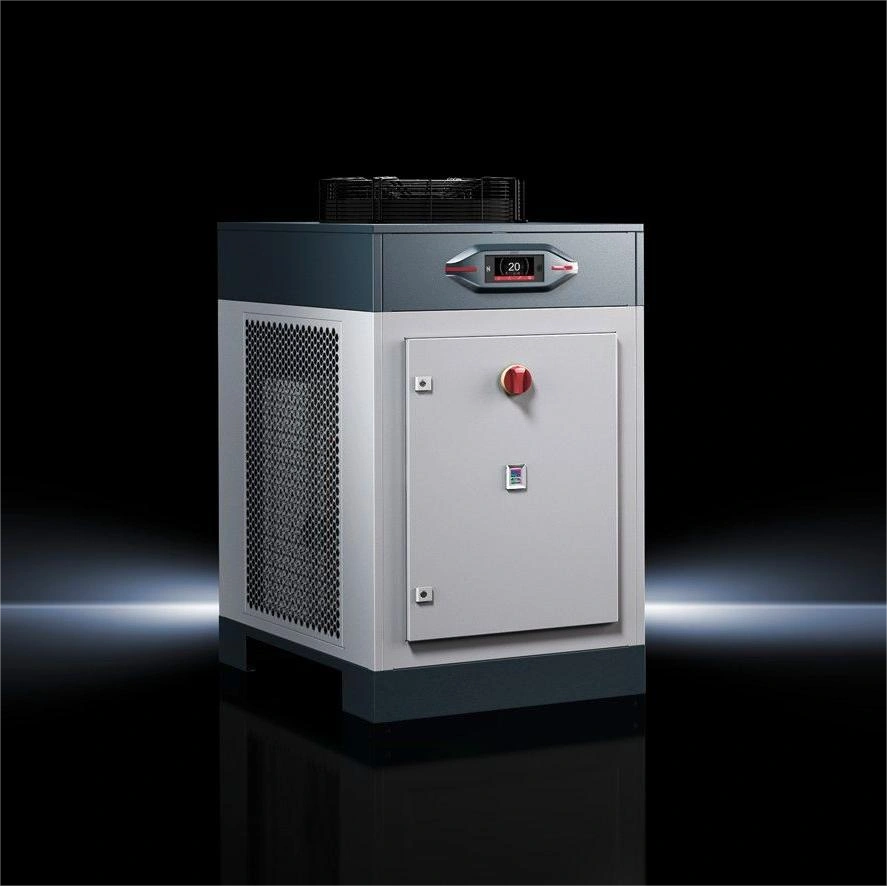

SK 3336400 Chillers Blue e
SK Blue e chiller 10.6/12.0 kW, 400 V, 3~, 50 Hz, 460 V, 3~, 60 Hz, WHD: 660 x 1,265 x 1,315 mm
-
3336400
-
Liên hệ
-
0
- Thông tin chung
- Tài liệu kỹ thuật
- Ứng dụng
- Lỗi thường gặp
- Hướng dẫn sử dụng
- Video
Total cooling output TW10 TU32, 50/60 Hz: 10,2 / 11,7 kW,,
Total cooling output TW18 TU32, 50/60 Hz: 11,8 / 13,2 kW
Total cooling output TW18 TU35, 50/60 Hz: 11,01 / 12,67 kW,,
Power consumption 50/60 Hz: 6,3 / 8,8 kW,,
Rated power input 50/60 Hz: 10,2 / 11,3 A,,
Volumetric flow (cooling medium) 50/60 Hz: 30 / 55 l/min,,
Pump pressure 50/60 Hz: 2,0 / 2,0 bar,,
Rated operating voltage: 400 V, 3~, 50 Hz; 460 V, 3~, 60 Hz,,
Colour: Enclosure: RAL 7035; Base/plinth: RAL 7016,,
Dimensions [WxHxD]: 660x1265x1315 mm,,
Operating temperature range: 10 °C to 43 °C,,
Liquid media temperature range: 10 °C to 25 °C,,
Temperature hysteresis: +/- 2 K,,
Number of cooling circuits: 1,,
Refrigerant / Quantity:,,R410a / 1350 g
Tank (Material): PE plastic,,
Tank (contents): 49 l,,
Water connections: R 1" IG,,
Noise level: 68 dB(A),,
Protection category IP to IEC 60 529: IP 44 (electrics),,
Weight: 247 kg,,
Weight in operating status: 316 kg
