CHI TIẾT SẢN PHẨM

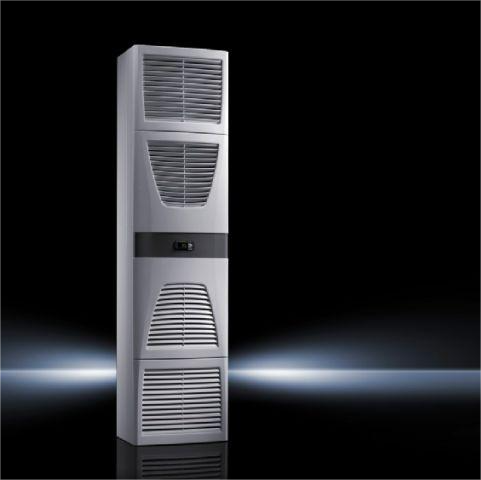

SK 3328500 Máy lạnh tủ điện TopTherm Blue e 2.000 W
Máy lạnh tủ điện 3328500 (máy làm mát tủ điện 3328500) công suất làm lạnh 2.000 W, được Rittal thiết kế treo đứng trên cánh cửa hoặc bên hông tủ...
-
3328500
-
Liên hệ
-
0
- Thông tin chung
- Tài liệu kỹ thuật
- Ứng dụng
- Lỗi thường gặp
- Hướng dẫn sử dụng
- Video
|
Article number |
SK 3328.500 |
|
Description |
Compact wall-mounted cooling units, with nano-coated condenser. |
|
Benefits |
May be linked with the IoT interface via Blue e IoT adaptor for cooling units with e-Comfort controller |
|
Material |
Sheet steel |
|
Colour |
RAL 7035 |
|
Protection category IP to IEC 60 529 |
External circuit IP 34 |
| Internal circuit IP 54 | |
|
Supply includes |
Nano-coated condenser |
| Fully wired ready for connection (plug-in terminal strip) | |
| Drilling template | |
| Assembly parts | |
| Integral electric condensate evaporation | |
|
Variant |
wall-mounted |
|
Total cooling output to DIN EN 14511 |
L 35 L 35 at 50 Hz: 2.1 kW |
| L 35 L 35 at 60 Hz: 2.44 kW | |
| L 35 L 50 at 50 Hz: 1.6 kW | |
| L 35 L 50 at 60 Hz: 1.85 kW | |
|
Air throughput (unimpeded air flow) |
External circuit: 980 m³/h |
| Internal circuit: 980 m³/h | |
|
Rated operating voltage |
230 V, 1~, 50 Hz/60 Hz |
|
Dimensions |
Width: 400 mm |
| Height: 1,580 mm | |
| Depth: 295 mm | |
|
Temperature control |
e-Comfort controller (factory setting +35 °C) |
|
Temperature range |
Bearing: -40 °C...+70 °C |
| Operation (environment): +10 °C...+55 °C | |
| Setting range: +20 °C...+55 °C | |
|
Refrigerant/cooling medium |
Refrigerant: R134a |
| Quantity: 0.95 kg | |
| Global Warming Potential (GWP): 1,430 | |
| CO₂ equivalent (CO₂e): 1.36 t | |
|
Power consumption P |
L 35 L 35 at 50 Hz: 0.86 kW |
| L 35 L 35 at 60 Hz: 1.04 kW | |
| L 35 L 50 at 50 Hz: 1.02 kW | |
| L 35 L 50 at 60 Hz: 1.23 kW | |
|
Rated current max. |
At 50 Hz: 5.8 A |
| At 60 Hz: 6.8 A | |
|
Start-up current max. |
At 50 Hz: 20 A |
| At 60 Hz: 22 A | |
|
Miniature circuit-breaker/fuse |
16 A |
|
Permissible operating pressure (p. max.) |
28 bar |
|
eCl@ss 8.0/8.1 |
27180704 |
|
Energy efficiency ratio (EER) 50/60 Hz L35 L35 |
2,3 / 2,47 |
|
Packs of |
1 pc(s) |
|
Weight/pack |
66 kg |
